Today we are going to get our first taste of working with movement data in R, but we will begin by introducing you to spatial data analysis in R more generally. In this section we will review some of the R packages available for handling spatial data, discuss the format of different spatial data types, and explore how we can manipulate and visualize these in R.
Much of the content and structure of this tutorial was inspired by Jamie Afflerbach’s own introduction to the sf library and spatial analysis in R (see her spatial-analysis-R repo). I have adapted it here for the specific purposes of our workshop.
Packages
Primarily we will be introducing the sf (“simple features”) package for working with simple spatial data.
The sf library is an R implementation of:
- a new spatial data class system in R
- functions for reading and writing spatial data
- tools for spatial operations on vectors
Ultimately this seeks to replace the older sp, rgdal, rgeos packages which formed the original toolset for working with spatial data in R. The sf library replaces the S4 class structure used in sp with simple feature access - the current standard across industry for organizing spatial data – extending R’s data.frame structure directly to accept spatial geometry attributes and making it easier to manipulate spatial datasets using tools like dplyr and the tidyverse. However, as this package is new and under developement there are times were we will switch back to the S4 class structure to play nice with our movement packages.
More information regarding this shift here
Spatial data comes in two forms:
- Vector data
- Raster data
With important differences across classes.
Vector Data
Vector models are a representation of the world using points, lines, and polygons. This class is useful for storing data that has discrete boundaries, such as country borders, land parcels, and streets.
Often, vector data is stored as “shapefiles” (.shp)
Raster Data
Raster models are a representation of the world as a surface divided into a regular grid of cells.
These are useful for storing data that varies continuously, as in an aerial photograph, a satellite image, a surface of chemical concentrations, or an elevation surface
Often, Rasters are stored as “GeoTIFFs” (.tif)
The sf library is used to store vector data but when working with raster data we will use operations from packages raster and velox.
Later when we work with movement data we may find a need for other spatial packages in R such as: spatial, the adehabitat packages, maptools, mapview, and the developers version of ggplot2.
Reading, Visualizaing, and Manipulating Spatial Data in R
To begin today, we are going to demonstrate how to sf and tidyverse libraries together to manipulate spatial vector data.
Step 1. Set up our environment and read in the data
#install.packages(c("sf", "mapview"))
library(tidyverse)
## ── Attaching packages ─────────────────────────────────────────────────────────────────────────────────────────────── tidyverse 1.2.1 ──
## ✔ ggplot2 2.2.1.9000 ✔ purrr 0.2.4
## ✔ tibble 1.3.4 ✔ dplyr 0.7.4
## ✔ tidyr 0.7.2 ✔ stringr 1.2.0
## ✔ readr 1.1.1 ✔ forcats 0.2.0
## ── Conflicts ────────────────────────────────────────────────────────────────────────────────────────────────── tidyverse_conflicts() ──
## ✖ dplyr::filter() masks stats::filter()
## ✖ dplyr::lag() masks stats::lag()
library(sf)
## Linking to GEOS 3.6.2, GDAL 2.2.3, proj.4 4.9.3
library(mapview)
## Loading required package: leaflet
sf objects usually have two classes - sf and data.frame. Two main differences comparing to a regular data.frame object are spatial metadata (geometry type, dimension, bbox, epsg (SRID), proj4string) and additional column - typically named geom or geometry.
Today we are going to play with a shapfiles of Hong Kong’s administrative boundaries downloaded from the global administrative areas database and provided for you in the shapefiles directory.
Now let’s use the st_read function to read both files in separately. Note that within the sf library most commands begin with the “st” prefix.
HK_boundary <- st_read("data_files/HK_boundary.shp")
## Reading layer `HK_boundary' from data source `/Users/dseidel/Desktop/HongKong/Materials/Day2/data_files/HK_boundary.shp' using driver `ESRI Shapefile'
## Simple feature collection with 1 feature and 69 fields
## geometry type: MULTIPOLYGON
## dimension: XY
## bbox: xmin: 113.8346 ymin: 22.15319 xmax: 114.441 ymax: 22.56209
## epsg (SRID): 4326
## proj4string: +proj=longlat +datum=WGS84 +no_defs
HK_districts <- st_read("data_files/HK_districts.shp")
## Reading layer `HK_districts' from data source `/Users/dseidel/Desktop/HongKong/Materials/Day2/data_files/HK_districts.shp' using driver `ESRI Shapefile'
## Simple feature collection with 18 features and 14 fields
## geometry type: MULTIPOLYGON
## dimension: XY
## bbox: xmin: 113.8346 ymin: 22.15319 xmax: 114.441 ymax: 22.56209
## epsg (SRID): 4326
## proj4string: +proj=longlat +datum=WGS84 +no_defs
Attributes of sf objects
Just for kicks, prove to yourself that a sf object is just a fancy data.frame: check out the class structure of “sf” objects
class(HK_boundary)
## [1] "sf" "data.frame"
Because of their dual class structure: sf objects can be used as a regular data.frame object in many operations. For instance, we can call simple data.frame operations like nrow or names on these objects with ease
nrow(HK_districts)
## [1] 18
ncol(HK_districts)
## [1] 15
names(HK_districts)
## [1] "ID_0" "ISO" "NAME_0" "ID_1" "NAME_1" "HASC_1"
## [7] "CCN_1" "CCA_1" "TYPE_1" "ENGTYPE" "NL_NAME" "VARNAME"
## [13] "Shp_Lng" "Shap_Ar" "geometry"
If we are ever curious about just the dataframe or just the geometry separately, we can use st_geometry commands. By setting the geometry to ‘NULL’ using st_set_geometry, a sf object returns to a simple data.frame. Calling the st_geometry from an sf object would extract just the spatial attributes turning this into a “simple feature collection” or “sfc”. To turn an sfc object back into an sf object use st_sf().
HK_boundary %>% class # complete sf object
## [1] "sf" "data.frame"
HK_boundary %>% st_set_geometry(NULL) %>% class # force to data.frame
## [1] "data.frame"
HK_boundary %>% st_geometry() %>% class # extract only the spatial info, force to "sfc"
## [1] "sfc_MULTIPOLYGON" "sfc"
Step 2: Visualize
Let’s take a look at our shapefiles, make sure they look like we expect.
sf objects and BaseR
# look what happens when we use generic plot on the whole dataframe
HK_districts %>% plot
## Warning: plotting the first 9 out of 14 attributes; use max.plot = 14 to
## plot all
## Warning in min(x): no non-missing arguments to min; returning Inf
## Warning in max(x): no non-missing arguments to max; returning -Inf
# pull just the geometry
HK_boundary %>% st_geometry() %>% plot
HK_districts %>% st_geometry() %>% plot
# or pull just one column
plot(HK_districts["NAME_1"])
With ggplot
ggplot2 now has integrated functionality to plot sf objects using geom_sf(). If the following code isn’t working, check to make sure you are using the developer’s version, devtools::install_github("tidyverse/ggplot2").
#simplest plot
ggplot(HK_districts) + geom_sf()
This is useful to make sure your file looks correct but doesn’t display any information about the data. We can plot these regions and fill each polygon based on the rgn_id.
ggplot(HK_districts) + geom_sf(aes(fill = NAME_1))
ggplot gives us useful defaults like Latitude and Longitude labels and cleaner legends but there are even fancier things we can do with maps… we’ll introduce you to one in the mapview library below.
Getting fancy with Mapview
mapview is a wrapper for the leaflet package for R. Leaflet is a visualization engine written in javascript that is widely used to make and embed interactive plots.
map <- mapview(HK_districts)
st_sample(HK_districts, 25) -> points
## although coordinates are longitude/latitude, st_intersects assumes that they are planar
#icon: http://leafletjs.com/examples/custom-icons/
#fishIcon <- makeIcon("images/lumpsucker.jpg", 18,18)
#mapview(HK_regions)@map %>% addTiles %>% addMarkers(data = points, icon=fishIcon)
mapview(points, map, cex=3, color="red")
Step 3: Mainuplate!
An important advantage of simple features in R is that their structure makes it easy to use the dplyr package on sf objects:
For instance, taking standard examples introduced yesterday:
select()
HK_boundary %>%
select(ID_0, ISO, NAME_LO, SOVEREI, FIPS, ISON, POP2000, SQKM) -> HK_trim
HK_trim
## Simple feature collection with 1 feature and 8 fields
## geometry type: MULTIPOLYGON
## dimension: XY
## bbox: xmin: 113.8346 ymin: 22.15319 xmax: 114.441 ymax: 22.56209
## epsg (SRID): 4326
## proj4string: +proj=longlat +datum=WGS84 +no_defs
## ID_0 ISO NAME_LO SOVEREI FIPS ISON POP2000 SQKM
## 1 102 HKG Hong Kong China HK 344 6859822 1092
## geometry
## 1 MULTIPOLYGON (((113.9240264...
mutate() & pull()
HK_trim %>%
mutate(POP_per_SQKM = POP2000/SQKM) %>% pull(POP_per_SQKM)
## [1] 6281.888
filter()
HK_districts %>%
filter(NAME_1 %in% c("Eastern", "North", "Islands"))
## Simple feature collection with 3 features and 14 fields
## geometry type: MULTIPOLYGON
## dimension: XY
## bbox: xmin: 113.8346 ymin: 22.15319 xmax: 114.3346 ymax: 22.56209
## epsg (SRID): 4326
## proj4string: +proj=longlat +datum=WGS84 +no_defs
## ID_0 ISO NAME_0 ID_1 NAME_1 HASC_1 CCN_1 CCA_1 TYPE_1 ENGTYPE
## 1 102 HKG Hong Kong 2 Eastern HK.EA NA <NA> District District
## 2 102 HKG Hong Kong 3 Islands HK.IS NA <NA> District District
## 3 102 HKG Hong Kong 7 North HK.NO NA <NA> District District
## NL_NAME VARNAME Shp_Lng Shap_Ar geometry
## 1 <NA> <NA> 0.2929576 0.001657421 MULTIPOLYGON (((114.1779174...
## 2 <NA> <NA> 2.7542074 0.015733596 MULTIPOLYGON (((113.9337463...
## 3 <NA> <NA> 1.4650372 0.012136878 MULTIPOLYGON (((114.2356948...

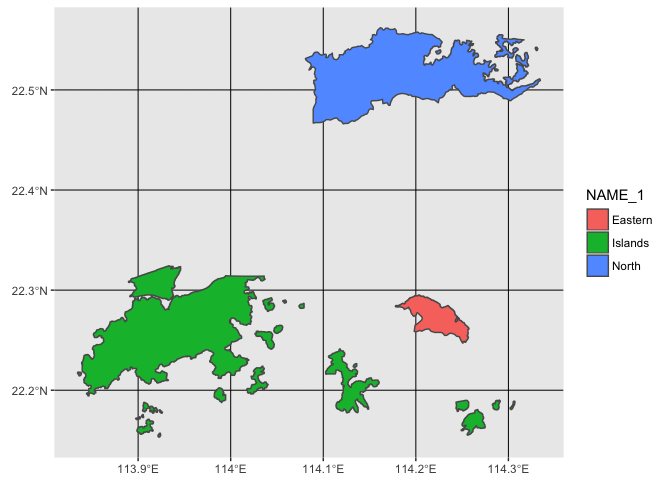

HK_districts %>%
filter(NAME_1 %in% c("Eastern", "North", "Islands")) %>%
ggplot(.) + geom_sf(aes(fill = NAME_1))
Spatial operations
Union

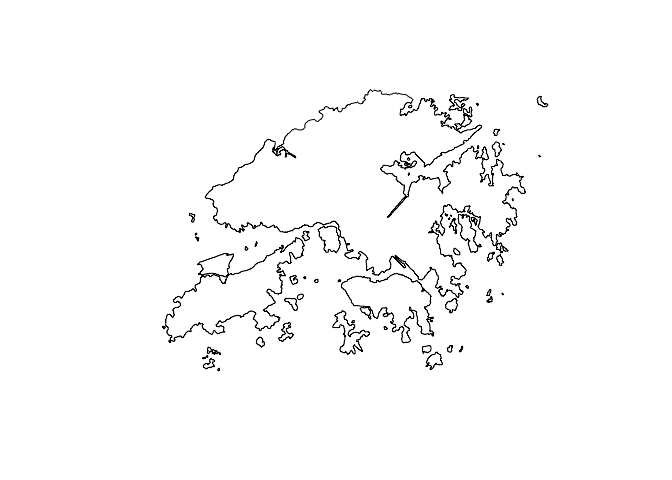

You can merge all polygons into one using st_union().
full_rgn <- st_union(HK_districts)
plot(full_rgn)
Joins
Perhaps we had some points – locations of animal observations maybe – and we wanted to join them to data in a different layer – the sf library and dplyr make this readily doable.
Below we join the randomly sampled points from above to the HK_districts layer, to pull the relevant district information for each point.
st_sf(points) %>% st_join(., HK_districts)
## although coordinates are longitude/latitude, st_intersects assumes that they are planar
## Simple feature collection with 35 features and 14 fields
## geometry type: POINT
## dimension: XY
## bbox: xmin: 113.8563 ymin: 22.22863 xmax: 114.3869 ymax: 22.53628
## epsg (SRID): 4326
## proj4string: +proj=longlat +datum=WGS84 +no_defs
## First 10 features:
## ID_0 ISO NAME_0 ID_1 NAME_1 HASC_1 CCN_1 CCA_1 TYPE_1
## 1 102 HKG Hong Kong 14 Tuen Mun HK.TM NA <NA> District
## 2 102 HKG Hong Kong 8 Sai Kung HK.SK NA <NA> District
## 3 102 HKG Hong Kong 18 Yuen Long HK.YL NA <NA> District
## 4 102 HKG Hong Kong 3 Islands HK.IS NA <NA> District
## 5 102 HKG Hong Kong 14 Tuen Mun HK.TM NA <NA> District
## 6 102 HKG Hong Kong 4 Kowloon City HK.KC NA <NA> District
## 7 102 HKG Hong Kong 3 Islands HK.IS NA <NA> District
## 8 102 HKG Hong Kong 9 Sha Tin HK.ST NA <NA> District
## 9 102 HKG Hong Kong 3 Islands HK.IS NA <NA> District
## 10 102 HKG Hong Kong 8 Sai Kung HK.SK NA <NA> District
## ENGTYPE NL_NAME VARNAME Shp_Lng Shap_Ar
## 1 District <NA> <NA> 0.7959588 0.0079396304
## 2 District <NA> <NA> 2.5614897 0.0125822680
## 3 District <NA> <NA> 0.8802538 0.0121403618
## 4 District <NA> <NA> 2.7542074 0.0157335956
## 5 District <NA> <NA> 0.7959588 0.0079396304
## 6 District <NA> <NA> 0.2588975 0.0009319862
## 7 District <NA> <NA> 2.7542074 0.0157335956
## 8 District <NA> <NA> 0.5821248 0.0058956100
## 9 District <NA> <NA> 2.7542074 0.0157335956
## 10 District <NA> <NA> 2.5614897 0.0125822680
## geometry
## 1 POINT (113.925868417528 22....
## 2 POINT (114.349924911183 22....
## 3 POINT (114.077785925781 22....
## 4 POINT (113.930414136978 22....
## 5 POINT (113.952787107826 22....
## 6 POINT (114.175931830609 22....
## 7 POINT (114.112771992756 22....
## 8 POINT (114.243565141369 22....
## 9 POINT (113.856258161929 22....
## 10 POINT (114.386890085383 22....
# Similar functions are available in other libraries:
# adehabitatMA::join()
# rgeos::over
From there it is simple to use group_by and tally (a wrapper for the more general summarise function) to count how many points we sampled in each district:
st_sf(points) %>%
st_join(., HK_districts) %>%
group_by(NAME_1) %>%
tally()
## although coordinates are longitude/latitude, st_intersects assumes that they are planar
## Simple feature collection with 11 features and 2 fields
## geometry type: GEOMETRY
## dimension: XY
## bbox: xmin: 113.8563 ymin: 22.22863 xmax: 114.3869 ymax: 22.53628
## epsg (SRID): 4326
## proj4string: +proj=longlat +datum=WGS84 +no_defs
## # A tibble: 11 x 3
## NAME_1 n geometry
## <fctr> <int> <simple_feature>
## 1 Islands 5 <MULTIPOINT (...>
## 2 Kowloon City 1 <POINT (114.1...>
## 3 Kwai Tsing 2 <MULTIPOINT (...>
## 4 North 4 <MULTIPOINT (...>
## 5 Sai Kung 5 <MULTIPOINT (...>
## 6 Sha Tin 2 <MULTIPOINT (...>
## 7 Sham Shui Po 1 <POINT (114.1...>
## 8 Tai Po 5 <MULTIPOINT (...>
## 9 Tsuen Wan 1 <POINT (114.1...>
## 10 Tuen Mun 4 <MULTIPOINT (...>
## 11 Yuen Long 5 <MULTIPOINT (...>
# all while retaining the spatial geometry associated with each point.
Projections & transformations with vectors and rasters
Above we have sometimes encountered warnings like this one: > although coordinates are longitude/latitude, st_intersects assumes that they are planar
This has to do with our coordinate system. Geographic coordinate systems give coordinates which are spherical (i.e. measured from the earth’s center) or planimetric (in which the earth’s coordinates are projected onto a two-dimensional planar surface). Most spatial operations in the sf library assume coordinates are projected into a planar surface which typically lend themselves to more interpretable measurements e.g meters or kilometers.
Above, all our vector data have been in the WGS84 spherical coordinate reference system, which uses longitude and latitude with units in degrees. An example of this projection can be seen in the lower right depication of the US in the image below.
It is crucial when doing spatial analyses to know and match the coordinate systems across all of your datasets and ensure everything is properly projected, or your results may be incorrect or your analysis may fail. This is true whether you are working with raster or vector data.
library(raster)
## Loading required package: sp
##
## Attaching package: 'raster'
## The following object is masked from 'package:dplyr':
##
## select
## The following object is masked from 'package:tidyr':
##
## extract
## The following object is masked from 'package:ggplot2':
##
## calc
# https://landcover.usgs.gov/global_climatology.php
# download.file("https://landcover.usgs.gov/documents/GlobalLandCover_tif.zip", "data_files/Landcover.zip")
# unzip("data_files/Landcover.zip", "data_files/")
land_cover <- raster("data_files/LCType.tif")
plot(land_cover)
crs(land_cover)
## CRS arguments:
## +proj=longlat +datum=WGS84 +no_defs +ellps=WGS84 +towgs84=0,0,0
Perhaps we want to work with both our HK_districts and the landcover dataset but in a planar coordinate system. To do this with an sf object we use st_transform, with a raster object, projectRaster.

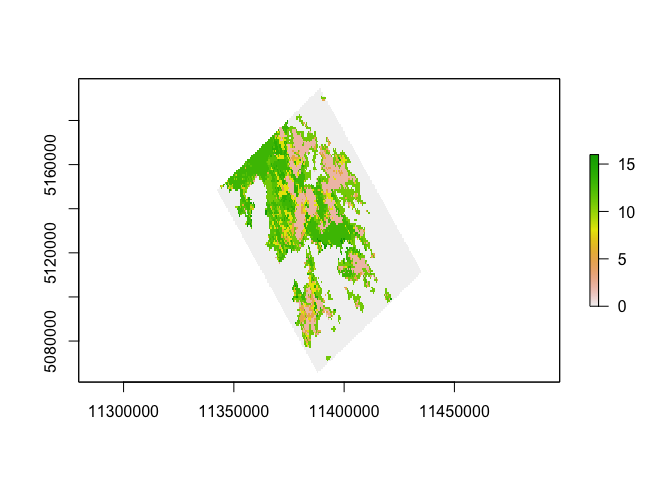

Let’s crop and transform these data into the World Azimuthal Equidistant projection to compare.
# to save time on the projection, let's trim the extent before projecting.
# We can do this because they are already in the same geographic crs.
# however, the extent call doesn't recognize sf objects yet so let's temporarily switch it back to `sp` format
HK_landcover <- crop(land_cover, extent(as(HK_boundary, "Spatial")))
HK_lc_proj <- projectRaster(HK_landcover, method= 'ngb', NAflag = 0,
crs = "+proj=aeqd +lat_0=0 +lon_0=0 +x_0=0 +y_0=0 +datum=WGS84 +units=m +no_defs")
By plotting these side by side, you can really see how different projections can be!
plot(HK_landcover)
plot(HK_lc_proj)
Intersections & Extractions
Commonly in movement ecology, we need to extract values from rasters across our vector data be it points where an animal walked or polygons like their home range or breeding sites for instance.
There are a number of functions to do this sort of spatial intersect and extraction in the rgeos and raster libraries e.g gIntersection and extract but they can be very inefficient in R - especially for large rasters. New libraries like fasterize and velox have been built to make these functions significantly faster. Below I will introduce velox but you can find more information about both by exploring their github pages.
Say we want to know the percentage of each landcover class each district is made up of. We can convert to a velox object to quickly and easily extract this information and use dplyr and purrr verbs to make a clean table of percentages by landcover class.
library(velox)
vx <- velox(HK_landcover) # makes a velox object from our raster
# lets give our classes names
landcover <- c("Water",
"Evergreen Needle leaf Forest",
"Evergreen Broadleaf Forest",
"Deciduous Needle leaf Forest",
"Deciduous Broadleaf Forest",
"Mixed Forests",
"Closed Shrublands",
"Open Shrublands",
"Woody Savannas",
"Savannas",
"Grasslands",
"Permanent Wetland",
"Croplands",
"Urban and Built-Up",
"Cropland/Natural Vegetation Mosaic", # #15 snow and ice not encountered
"Barren or Sparsely Vegetated")
landcover_by_district <- vx$extract(HK_districts) %>% #extracts the raster cells in each district
map(., plyr::count) %>% #counts each category
reduce(., function(dtf1,dtf2) full_join(dtf1,dtf2, by="x")) %>% # reduces to a dataframe
arrange(x) # orders
head(landcover_by_district)
## x freq.x freq.y freq.x.x freq.y.y freq.x.x.x freq.y.y.y freq.x.x.x.x
## 1 0 15 4 132 2 16 NA 10
## 2 1 NA NA NA NA NA NA NA
## 3 2 8 31 182 NA NA NA 203
## 4 3 1 NA 10 NA NA NA NA
## 5 4 NA NA 1 NA NA NA NA
## 6 5 7 5 134 NA 5 NA 25
## freq.y.y.y.y freq.x.x.x.x.x freq.y.y.y.y.y freq.x.x.x.x.x.x
## 1 36 NA 5 28
## 2 1 NA NA NA
## 3 216 99 NA 73
## 4 3 NA NA 6
## 5 1 NA NA NA
## 6 36 24 NA 7
## freq.y.y.y.y.y.y freq.x.x.x.x.x.x.x freq.y.y.y.y.y.y.y
## 1 47 18 52
## 2 1 NA NA
## 3 334 95 12
## 4 NA 1 4
## 5 NA NA NA
## 6 58 23 15
## freq.x.x.x.x.x.x.x.x freq.y.y.y.y.y.y.y.y freq.x.x.x.x.x.x.x.x.x
## 1 4 NA 17
## 2 NA NA NA
## 3 7 5 NA
## 4 NA NA NA
## 5 NA NA NA
## 6 1 NA NA
## freq.y.y.y.y.y.y.y.y.y
## 1 26
## 2 NA
## 3 74
## 4 NA
## 5 NA
## 6 16
landcover_by_district[is.na(landcover_by_district)] <- 0 # make NAs 0
names(landcover_by_district) <- c("Class_No", seq(1,18,1)) # improve column names
landcover_by_district$Class <- landcover # add a column including each landover class name
head(landcover_by_district)
## Class_No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
## 1 0 15 4 132 2 16 0 10 36 0 5 28 47 18 52 4 0 17 26
## 2 1 0 0 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0
## 3 2 8 31 182 0 0 0 203 216 99 0 73 334 95 12 7 5 0 74
## 4 3 1 0 10 0 0 0 0 3 0 0 6 0 1 4 0 0 0 0
## 5 4 0 0 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
## 6 5 7 5 134 0 5 0 25 36 24 0 7 58 23 15 1 0 0 16
## Class
## 1 Water
## 2 Evergreen Needle leaf Forest
## 3 Evergreen Broadleaf Forest
## 4 Deciduous Needle leaf Forest
## 5 Deciduous Broadleaf Forest
## 6 Mixed Forests
district_totals <- map_dbl(landcover_by_district[,2:19], sum) #sum for each district, i.e. column
district_totals
## 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
## 65 93 894 54 120 59 692 729 341 46 212 771 321 451 52 46 42 707
for (i in 1:18){ # convert to percentages
landcover_by_district[,i+1] <- round((landcover_by_district[,i+1]/district_totals[i])*100,2)
}
# transpose things a little
landcover_by_district %>%
dplyr::select(-Class_No) %>%
gather(key = District_No, value = value, 1:18) %>%
spread(key = names(.)[1], value = 'value') %>%
arrange(as.numeric(District_No)) -> district_LC
head(district_LC)
## District_No Barren or Sparsely Vegetated Closed Shrublands
## 1 1 3.08 0.00
## 2 2 2.15 1.08
## 3 3 0.34 0.00
## 4 4 1.85 0.00
## 5 5 2.50 0.83
## 6 6 0.00 0.00
## Cropland/Natural Vegetation Mosaic Croplands Deciduous Broadleaf Forest
## 1 0.00 1.54 0.00
## 2 0.00 7.53 0.00
## 3 2.91 3.47 0.11
## 4 0.00 5.56 0.00
## 5 0.00 10.00 0.00
## 6 0.00 1.69 0.00
## Deciduous Needle leaf Forest Evergreen Broadleaf Forest
## 1 1.54 12.31
## 2 0.00 33.33
## 3 1.12 20.36
## 4 0.00 0.00
## 5 0.00 0.00
## 6 0.00 0.00
## Evergreen Needle leaf Forest Grasslands Mixed Forests Open Shrublands
## 1 0 4.62 10.77 0.00
## 2 0 0.00 5.38 0.00
## 3 0 0.34 14.99 1.34
## 4 0 1.85 0.00 0.00
## 5 0 2.50 4.17 2.50
## 6 0 6.78 0.00 1.69
## Permanent Wetland Savannas Urban and Built-Up Water Woody Savannas
## 1 18.46 0.00 20.00 23.08 4.62
## 2 21.51 0.00 20.43 4.30 4.30
## 3 27.18 0.78 4.14 14.77 8.17
## 4 0.00 0.00 87.04 3.70 0.00
## 5 7.50 0.00 55.83 13.33 0.83
## 6 3.39 0.00 86.44 0.00 0.00
In this format it’s easy to pull out districts by their landcover characteristics.
For instance, perhaps we want to know which districts are more than 80% Urban:
district_LC %>% filter(`Urban and Built-Up` > 80) %>% pull(District_No)
## [1] "4" "6" "16"
We will continue to see how useful extraction in this afternoon’s activity and we get to RSFs tomorrow.
